david(at)carter.net
Guest

Posted: Sun Mar 26, 2023 7:10 am Post subject: 100 Amp Inductive Current Sensor 5 volt input Ring Mount ne

Much less expensive source for what I believe is the same sensor.  I have this one in my plane.

https://amploc.com/products/key100-open-loop-hall-effect-sensor



On Sun, Mar 26, 2023 at 10:32 AM user9253 <fransew(at)gmail.com (fransew(at)gmail.com)> wrote:



 	  Quote:
		  --> AeroElectric-List message posted by: "user9253" <fransew(at)gmail.com (fransew(at)gmail.com)>



 GRT current sensor



 https://grtavionics.com/media/AMP_HE_RevD.pdf



 https://grtavionics.com/product-category/eis-probes/current-sensors/



 --------

 Joe Gores









 Read this topic online here:



 http://forums.matronics.com/viewtopic.php?p=510505#510505













 ===========

  -

 Electric-List" rel="noreferrer" target="_blank">http://www.matronics.com/Navigator?AeroElectric-List

 ===========

  FORUMS -

 eferrer" target="_blank">http://forums.matronics.com

 ===========

 WIKI -

 errer" target="_blank">http://wiki.matronics.com

 ===========

 b Site -

           -Matt Dralle, List Admin.

 ="noreferrer" target="_blank">https://matronics.com/contribution

 ===========












--

---

David Carter

david(at)carter.net (david(at)carter.net)

- The Matronics AeroElectric-List Email Forum -

Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:

http://www.matronics.com/Navigator?AeroElectric-List

user9253

Joined: 28 Mar 2008
Posts: 1921
Location: Riley TWP Michigan

Posted: Sun Mar 26, 2023 10:22 am Post subject: Re: 100 Amp Inductive Current Sensor 5 volt input Ring Moun

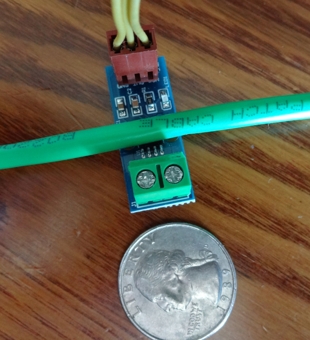

I purchased a ACS712 Hall effect sensor from eBay for $2 to play with on the work bench.  I did not install it in an airplane.

The manufacturer intended that the current carrying wire be cut and connected to the green terminal strip.

If installed in an aircraft, it is not desired to cut a heavy wire which would introduce two more failure points.

So I just laid the uncut wire across the IC and tested it like that.  It worked fine.

If one were to actually install this sensor in an aircraft, the wire being monitored could be glued to the IC using E6000.

Three wires need to be connected, +5VDC, ground, and output.

Your ammeter display should have the ability to be calibrated.
