dave.go
Joined: 20 Jul 2009
Posts: 26
|
 Posted: Sun Oct 10, 2010 1:31 pm Post subject: coolant leak 582 |
 |
|
My newly serviced 582 has a coolant leak and I'm looking for input. The leak comes out right at the drain port for the water pump, but does not appear to come through the drain. I'm having a hard time to locate it exactly. It's a fairly large leak and should be easier to pin down but the number of surfaces coming together at this point is hampering my ability to see clearly.

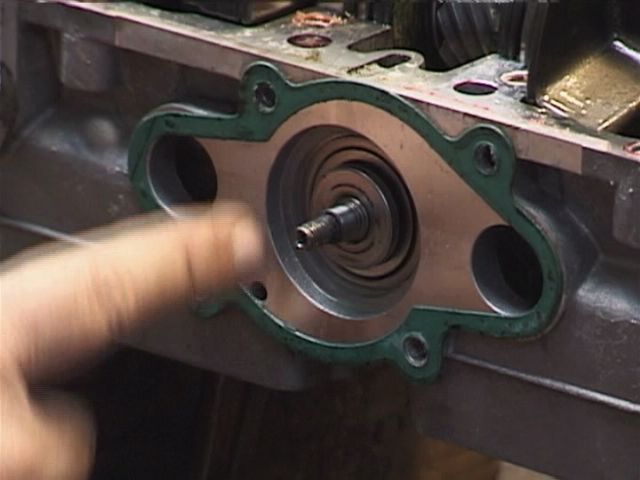

In this image you are looking at a screen capture of the top case, there is no corresponding hole in the bottom case. I have checked the crankcases and the oil from the cross-shaft compartment and found no coolant.
I'm hoping the water pump cover is leaking but I'm curious about the hole indicated, which also comes out in the same area. Is this hole connected in any way to the water jacket? Is the any source of coolant here except the cover leaking on the water pump?
Any experiance you can share will be helpful as I am not keen to split the case looking for this leak.
| | - The Matronics RotaxEngines-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RotaxEngines-List |
|
| Description: |
|
| Filesize: |
34.99 KB |
| Viewed: |
2134 Time(s) |
|
|
|
| Back to top |
|
 |
occom
Joined: 26 Aug 2006
Posts: 404
|
| Posted: Sun Oct 10, 2010 2:32 pm Post subject: coolant leak 582 |
|
|
Sorry, the arrow didn't make it. [img]cid:0C6C7283C3144492936F49A17384F6B2(at)dave[/img]
[quote] ---
| | - The Matronics RotaxEngines-List Email Forum - | | | Use the List Feature Navigator to browse the many List utilities available such as the Email Subscriptions page, Archive Search & Download, 7-Day Browse, Chat, FAQ, Photoshare, and much more:
http://www.matronics.com/Navigator?RotaxEngines-List |
|
| Description: |
|
| Filesize: |
33.68 KB |
| Viewed: |
2134 Time(s) |
|
|
|
| Back to top |
|
|
|
|
