exhaust system modification

Matronics Email Lists Forum Index -> JabiruEngine-List

View previous topic :: View next topic

Author Message

Lynn Matteson

Joined: 10 Jan 2006
Posts: 2778
Location: Grass Lake, Michigan

Posted: Fri Jun 08, 2012 4:19 pm Post subject: exhaust system modification

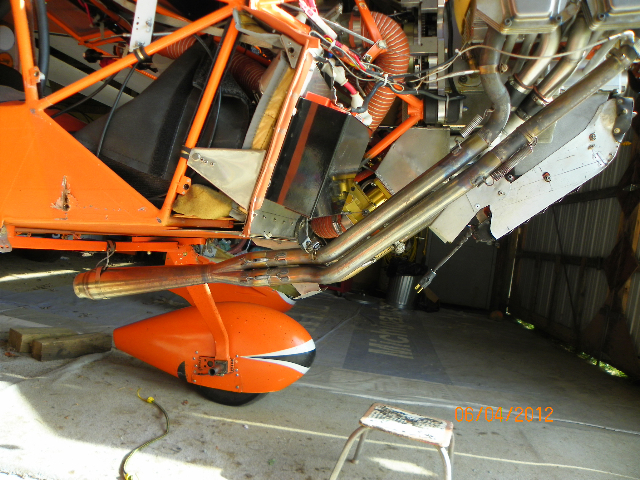

Here is a shot of my new exhaust system, with Burn's Stainless 4-

into-1 collector and megaphone, if anybody is interested.

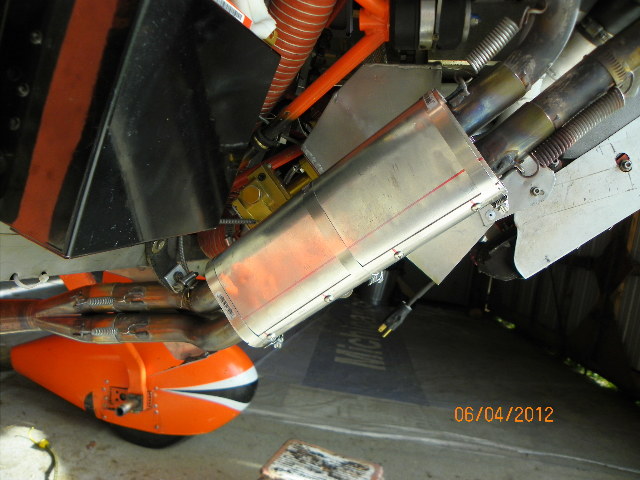

Just today I installed heat muffs on both sides to allow for cabin

heat, and carb (TBI) heat. Both work well, with the carb heat side

increasing the inlet air temp from about 90 deg. F., to 175 deg F. in

about 15 seconds. The sound is pretty mellow, too. : )



Lynn Matteson

Kitfox IV Speedster, taildragger

Jabiru 2200, #2062

Prince prop 64 x 30, P-tip

Electroair direct-fire ignition system

Rotec TBI-40 injection (sleeved to 36mm)

Status: flying with 1279 hrs... (since 3-27-2006)


Description:

Filesize:

481.93 KB

Viewed:

11307 Time(s)

_________________
Lynn
Kitfox IV-Jabiru 2200
N369LM

Jim McCormick

Joined: 19 Mar 2007
Posts: 18
Location: Fresno, CA

Posted: Fri Jun 08, 2012 5:16 pm Post subject: exhaust system modification

Hey Lynn



Nice Job!

Jim McCormick

Jabiru Pacific LLC

255 W Fallbrook Suite 202B

Fresno, Ca 93722

559-431-1701

jim(at)jabirupacific.com

http://www.jabirupacific.com



On 6/8/12 5:14 PM, "Lynn Matteson" <lynnmatt(at)jps.net> wrote:



 	  Quote:
		   Here is a shot of my new exhaust system, with Burn's Stainless 4-

 into-1 collector and megaphone, if anybody is interested.





 Just today I installed heat muffs on both sides to allow for cabin

 heat, and carb (TBI) heat. Both work well, with the carb heat side

 increasing the inlet air temp from about 90 deg. F., to 175 deg F. in

 about 15 seconds. The sound is pretty mellow, too. : )



 Lynn Matteson

 Kitfox IV Speedster, taildragger

 Jabiru 2200, #2062

 Prince prop 64 x 30, P-tip

 Electroair direct-fire ignition system

 Rotec TBI-40 injection (sleeved to 36mm)

 Status: flying with 1279 hrs... (since 3-27-2006)

dons701

Joined: 22 May 2009
Posts: 80
Location: Hershey, PA

Posted: Fri Jun 08, 2012 6:20 pm Post subject: Re: exhaust system modification

Hi Lynn, gotta ask. Any noticeable changes in power??

_________________
Zenith 701 #76120
Jabiru 2200A #2456 95 hours
Sensenich Wood 64-PJ-36 Prop

Lynn Matteson

Joined: 10 Jan 2006
Posts: 2778
Location: Grass Lake, Michigan

Posted: Fri Jun 08, 2012 6:48 pm Post subject: exhaust system modification

Thanks, Jim....I'm only responsible for the pipes leading down to the

collector, but overall, I think it looks pretty good.

Lynn Matteson

Kitfox IV Speedster, taildragger

Jabiru 2200, #2062

Prince prop 64 x 30, P-tip

Electroair direct-fire ignition system

Rotec TBI-40 injection (sleeved to 36mm)

Status: flying with 1279 hrs... (since 3-27-2006)

On Jun 8, 2012, at 9:15 PM, jim wrote:



 	  Quote:




 Hey Lynn



 Nice Job!

 Jim McCormick

 Jabiru Pacific LLC

 255 W Fallbrook Suite 202B

 Fresno, Ca 93722

 559-431-1701

 jim(at)jabirupacific.com

 http://www.jabirupacific.com



 On 6/8/12 5:14 PM, "Lynn Matteson" <lynnmatt(at)jps.net> wrote:



> Here is a shot of my new exhaust system, with Burn's Stainless 4-

> into-1 collector and megaphone, if anybody is interested.

> Just today I installed heat muffs on both sides to allow for cabin

> heat, and carb (TBI) heat. Both work well, with the carb heat side

> increasing the inlet air temp from about 90 deg. F., to 175 deg F. in

> about 15 seconds. The sound is pretty mellow, too. : )

>

> Lynn Matteson

> Kitfox IV Speedster, taildragger

> Jabiru 2200, #2062

> Prince prop 64 x 30, P-tip

> Electroair direct-fire ignition system

> Rotec TBI-40 injection (sleeved to 36mm)

> Status: flying with 1279 hrs... (since 3-27-2006)

>

>

_________________
Lynn
Kitfox IV-Jabiru 2200
N369LM

Lynn Matteson

Joined: 10 Jan 2006
Posts: 2778
Location: Grass Lake, Michigan

Posted: Fri Jun 08, 2012 7:12 pm Post subject: exhaust system modification

Hi Don-

It's really hard to say whether the power was improved or not, just

because of the very nature of flight....with race cars, you can

always compare lap times, 1/4 mile times, etc., but with the

varieties of flight conditions, I can't tell for sure if any more

power is being produced. My primary reason for doing this job was

inspiration that I got when reading the April 2012 issue of Kitplanes

magazine about making headers for a 540 Lycoming, I think it was.

Also, I had two straight pipes before and it was pretty noisy, and I

wanted to try to get the sound a bit more controlled.



To order the collector, I had to supply Burns with cam timing, valve

lift and size, port size, engine size, primary exhaust diameter,

desired rpm where the engine will run, etc., and they run those specs

through their design-X program and give you the recommended specs for

the collector and the diameter and length of the megaphone and the

reverse cone on the end. The reverse cone is said to extend the

torque range. I have to admit that I did not make the primaries the

exact length that I should have. To do so would have taken too much

time and effort.....I may do so in the future. This will require

making the original #3 and #4 pipe the same length as the original #1

and #2 pipes which are currently a bit longer. This means snaking

some tubing in a roundabout way so that all the primaries will be the

same length, and then the system will be tuned properly, and I'll get

the most benefit from the collector and megaphone. But I'm happy with

the system for now, and when I get bored, I'll fire up the TIG and

modify those #3 and 4 pipes.



Incidentally, I tried "back-purging" for the first time on this

job...stainless steel welding looks like crap without it....and was

amazed at how good the welds that I did came out. Burns has good

information on their website as to how to do this.



Lynn Matteson

Kitfox IV Speedster, taildragger

Jabiru 2200, #2062

Prince prop 64 x 30, P-tip

Electroair direct-fire ignition system

Rotec TBI-40 injection (sleeved to 36mm)

Status: flying with 1279 hrs... (since 3-27-2006)





On Jun 8, 2012, at 10:20 PM, dons701 wrote:



 	  Quote:


 <burdon1(at)comcast.net>



 Hi Lynn, gotta ask. Any noticeable changes in power??



 --------

 Zenith 701 #76120

 Jabiru 2200A #2456  95 hours

 Sensenich Wood 64-PJ-36 Prop





 Read this topic online here:



 http://forums.matronics.com/viewtopic.php?p=375070#375070

_________________
Lynn
Kitfox IV-Jabiru 2200
N369LM

checkpoint2(at)comcast.ne
Guest

Posted: Sat Jun 09, 2012 6:44 am Post subject: exhaust system modification

Hey Lynn That is a positive move.  I extended the pipes from

the two into one junction and added approximately 24 inches of extension

each side. I used motorcycle tabs and springs to support the additional

weight.  It is not tuned but it's not too loud, and no cracks in about a 100

hours.   I like your idea though. N 380 BH Alpi Pioneer Jabiru 2200.



--

Lynn Matteson

Joined: 10 Jan 2006
Posts: 2778
Location: Grass Lake, Michigan

Posted: Sat Jun 09, 2012 9:30 am Post subject: exhaust system modification

Thanks, Bob. The other reason that I did not try to "tune" the

primary pipes to the suggested 32" was because of the problem of

wrapping a heat muff around the pair of pipes on each side. If I had

added some "extender bends" to the rear pipes, the heat muff would

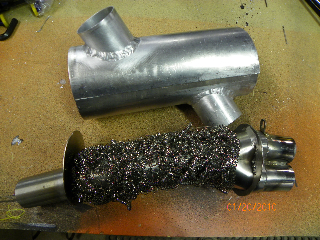

have been the size of a 55-gallon barrel. Here's a picture of the

heat muffs prior to welding on the in and out tubes, which are now

finished and installed:



Now that I look at the picture again, the heat muffs will stay the

same regardless of what I do to the Jabiru original rear primary

pipes, as long as I do it before the slip-joint....Duhhh!! (sometimes

I engage the fingers before the brain)  Let me start again....the

main reason that I did not make all pipes the same length was to be

able to expedite the job, and get back to flying.



By the way, Burns' Stainless sells the tabs and springs (called

beehive springs, I think) and also sells stainless steel tabs which

sit side-by-side on the to-be-connected pipes and are held together

by a bolt.



Lynn Matteson

Kitfox IV Speedster, taildragger

Jabiru 2200, #2062

Prince prop 64 x 30, P-tip

Electroair direct-fire ignition system

Rotec TBI-40 injection (sleeved to 36mm)

Status: flying with 1280 hrs... (since 3-27-2006)





On Jun 9, 2012, at 10:44 AM, Bob Haas wrote:



 	  Quote:


 <checkpoint2(at)comcast.net>



                Hey Lynn That is a positive move.  I extended the

 pipes from the two into one junction and added approximately 24

 inches of extension

 each side. I used motorcycle tabs and springs to support the

 additional weight.  It is not tuned but it's not too loud, and no

 cracks in about a 100

 hours.   I like your idea though. N 380 BH Alpi Pioneer Jabiru 2200.


Description:

Filesize:

401.09 KB

Viewed:

11276 Time(s)

_________________
Lynn
Kitfox IV-Jabiru 2200
N369LM

Lynn Matteson

Joined: 10 Jan 2006
Posts: 2778
Location: Grass Lake, Michigan

Posted: Sat Jun 09, 2012 9:33 am Post subject: exhaust system modification

Thanks, Bob. The other reason that I did not try to "tune" the

primary pipes to the suggested 32" was because of the problem of

wrapping a heat muff around the pair of pipes on each side. If I had

added some "extender bends" to the rear pipes, the heat muff would

have been the size of a 55-gallon barrel. Here's a picture of the

heat muffs prior to welding on the in and out tubes, which are now

finished and installed:



Now that I look at the picture again, the heat muffs will stay the

same regardless of what I do to the Jabiru original rear primary

pipes, as long as I do it before the slip-joint....Duhhh!! (sometimes

I engage the fingers before the brain)  Let me start again....the

main reason that I did not make all pipes the same length was to be

able to expedite the job, and get back to flying.



By the way, Burns' Stainless sells the tabs and springs (called

beehive springs, I think) and also sells stainless steel tabs which

sit side-by-side on the to-be-connected pipes and are held together

by a bolt.



Lynn Matteson

Kitfox IV Speedster, taildragger

Jabiru 2200, #2062

Prince prop 64 x 30, P-tip

Electroair direct-fire ignition system

Rotec TBI-40 injection (sleeved to 36mm)

Status: flying with 1280 hrs... (since 3-27-2006)





On Jun 9, 2012, at 10:44 AM, Bob Haas wrote:



 	  Quote:


 <checkpoint2(at)comcast.net>



                Hey Lynn That is a positive move.  I extended the

 pipes from the two into one junction and added approximately 24

 inches of extension

 each side. I used motorcycle tabs and springs to support the

 additional weight.  It is not tuned but it's not too loud, and no

 cracks in about a 100

 hours.   I like your idea though. N 380 BH Alpi Pioneer Jabiru 2200.


Description:

Filesize:

401.09 KB

Viewed:

11276 Time(s)

_________________
Lynn
Kitfox IV-Jabiru 2200
N369LM

checkpoint2(at)comcast.ne
Guest

Posted: Tue Jun 12, 2012 10:43 am Post subject: exhaust system modification

Lynn,  Makes sense to me.  Right now I would have to 15000 ft.

or higher to justify a heat muff. My aircraft only flies in the confines of

the

Florida Peninsula, no heat required.  Bob Haas.



--

Lynn Matteson

Joined: 10 Jan 2006
Posts: 2778
Location: Grass Lake, Michigan

Posted: Wed Jun 13, 2012 4:50 am Post subject: exhaust system modification

I gotcha, Bob....this morning that heat muff felt really good in the

46 degree morning air....quite a change from Mondays' 90!



Lynn Matteson

Kitfox IV Speedster, taildragger

Jabiru 2200, #2062

Prince prop 64 x 30, P-tip

Electroair direct-fire ignition system

Rotec TBI-40 injection (sleeved to 36mm)

Status: flying with 1284 hrs... (since 3-27-2006)

do not archive



On Jun 12, 2012, at 2:41 PM, Bob Haas wrote:



[quote]

 <checkpoint2(at)comcast.net>



            Lynn,  Makes sense to me.  Right now I would have to

 15000 ft. or higher to justify a heat muff. My aircraft only flies

 in the confines of the

 Florida Peninsula, no heat required.  Bob Haas.



 --

_________________
Lynn
Kitfox IV-Jabiru 2200
N369LM

carlmeek(at)gmail.com
Guest

Posted: Wed Jun 13, 2012 4:58 am Post subject: exhaust system modification

While are on the topic of heat muffs, does anyone know where I can buy one

(or two!) for a Jabiru 3300?

I've not found a supplier who has them.



Thanks,

-Carl.



On 13/06/2012 13:49, "Lynn Matteson" <lynnmatt(at)jps.net> wrote:



[quote]



I gotcha, Bob....this morning that heat muff felt really good in the

46 degree morning air....quite a change from Mondays' 90!



Lynn Matteson

Kitfox IV Speedster, taildragger

Jabiru 2200, #2062

Prince prop 64 x 30, P-tip

Electroair direct-fire ignition system

Rotec TBI-40 injection (sleeved to 36mm)

Status: flying with 1284 hrs... (since 3-27-2006)

do not archive



On Jun 12, 2012, at 2:41 PM, Bob Haas wrote:



>

> <checkpoint2(at)comcast.net>

>

>            Lynn,  Makes sense to me.  Right now I would have to

> 15000 ft. or higher to justify a heat muff. My aircraft only flies

> in the confines of the

> Florida Peninsula, no heat required.  Bob Haas.

>

> --

dwwilt

Joined: 06 Dec 2010
Posts: 192

Posted: Wed Jun 13, 2012 5:01 am Post subject: exhaust system modification

I would think that you could get one from the dealer.





   Dennis

   N616DW (Arion Lightning S/N 132)







   --

_________________
Dennis

mhubel

Joined: 05 Sep 2009
Posts: 141

Posted: Wed Jun 13, 2012 5:28 am Post subject: exhaust system modification

Carl,

     If you want one which will fit on the pipe coming out of the

muffler instead of one that goes on the muffler and spans a possibly

leaky weld (don't ask), you can contact:



sales(at)aircraftexhaust.net



They can supply one of almost any size.



I now have one which I took off the muffler but can't really recommend

it for anyone.

On 06/13/2012 8:57 AM, Carl Meek wrote:

[quote]



 While are on the topic of heat muffs, does anyone know where I can buy one

 (or two!) for a Jabiru 3300?

 I've not found a supplier who has them.



 Thanks,

 -Carl.



 On 13/06/2012 13:49, "Lynn Matteson"<lynnmatt(at)jps.net>  wrote:



>

>

> I gotcha, Bob....this morning that heat muff felt really good in the

> 46 degree morning air....quite a change from Mondays' 90!

>

> Lynn Matteson

> Kitfox IV Speedster, taildragger

> Jabiru 2200, #2062

> Prince prop 64 x 30, P-tip

> Electroair direct-fire ignition system

> Rotec TBI-40 injection (sleeved to 36mm)

> Status: flying with 1284 hrs... (since 3-27-2006)

> do not archive

>

> On Jun 12, 2012, at 2:41 PM, Bob Haas wrote:

>

>>

>> <checkpoint2(at)comcast.net>

>>

>>             Lynn,  Makes sense to me.  Right now I would have to

>> 15000 ft. or higher to justify a heat muff. My aircraft only flies

>> in the confines of the

>> Florida Peninsula, no heat required.  Bob Haas.

>>

>> --

_________________
Mark Hubelbank
N708HU
CH601XL
Jabiru 3300
Rotec TBI 40-3 carb
Sensenich ground adj prop.
240 hr TAF
Pictures at photo.hubbles.com

Lynn Matteson

Joined: 10 Jan 2006
Posts: 2778
Location: Grass Lake, Michigan

Posted: Thu Jun 14, 2012 2:42 am Post subject: exhaust system modification

I built a pair of muffs for a friends' 3300 in his Waiex. I made the

front "bulkhead" for the muff behind all the factory welds so no

chance of a leaky weld admitting CO into the cabin. Making that

bulkhead was a BITCH! It involved cutting a 3-lobe hole into a piece

of stainless steel, and cutting and fitting, cutting and fitting

until it finally fit. I don't know how well they worked, because

another person suggested that they might be the reason that his

engine...brand new and not broken in yet... was overheating (the jury

is still out on that call), so he took them off. But here are

pictures of what I did.

Lynn Matteson

Kitfox IV Speedster, taildragger

Jabiru 2200, #2062

Prince prop 64 x 30, P-tip

Electroair direct-fire ignition system

Rotec TBI-40 injection (sleeved to 36mm)

Status: flying with 1285 hrs... (since 3-27-2006)

On Jun 13, 2012, at 8:57 AM, Carl Meek wrote:



 	  Quote:


 <carlmeek(at)gmail.com>



 While are on the topic of heat muffs, does anyone know where I can

 buy one

 (or two!) for a Jabiru 3300?

 I've not found a supplier who has them.



 Thanks,

 -Carl.


Description:

Filesize:

137.92 KB

Viewed:

11215 Time(s)


Description:

Filesize:

148.87 KB

Viewed:

11215 Time(s)

_________________
Lynn
Kitfox IV-Jabiru 2200
N369LM

Display posts from previous:

	Matronics Email Lists Forum Index -> JabiruEngine-List	All times are GMT - 8 Hours
Page 1 of 1

Jump to:

You cannot post new topics in this forum
You cannot reply to topics in this forum
You cannot edit your posts in this forum
You cannot delete your posts in this forum
You cannot vote in polls in this forum
You cannot attach files in this forum
You can download files in this forum
